Rail
E No:
|
MP-number: M100001-2700

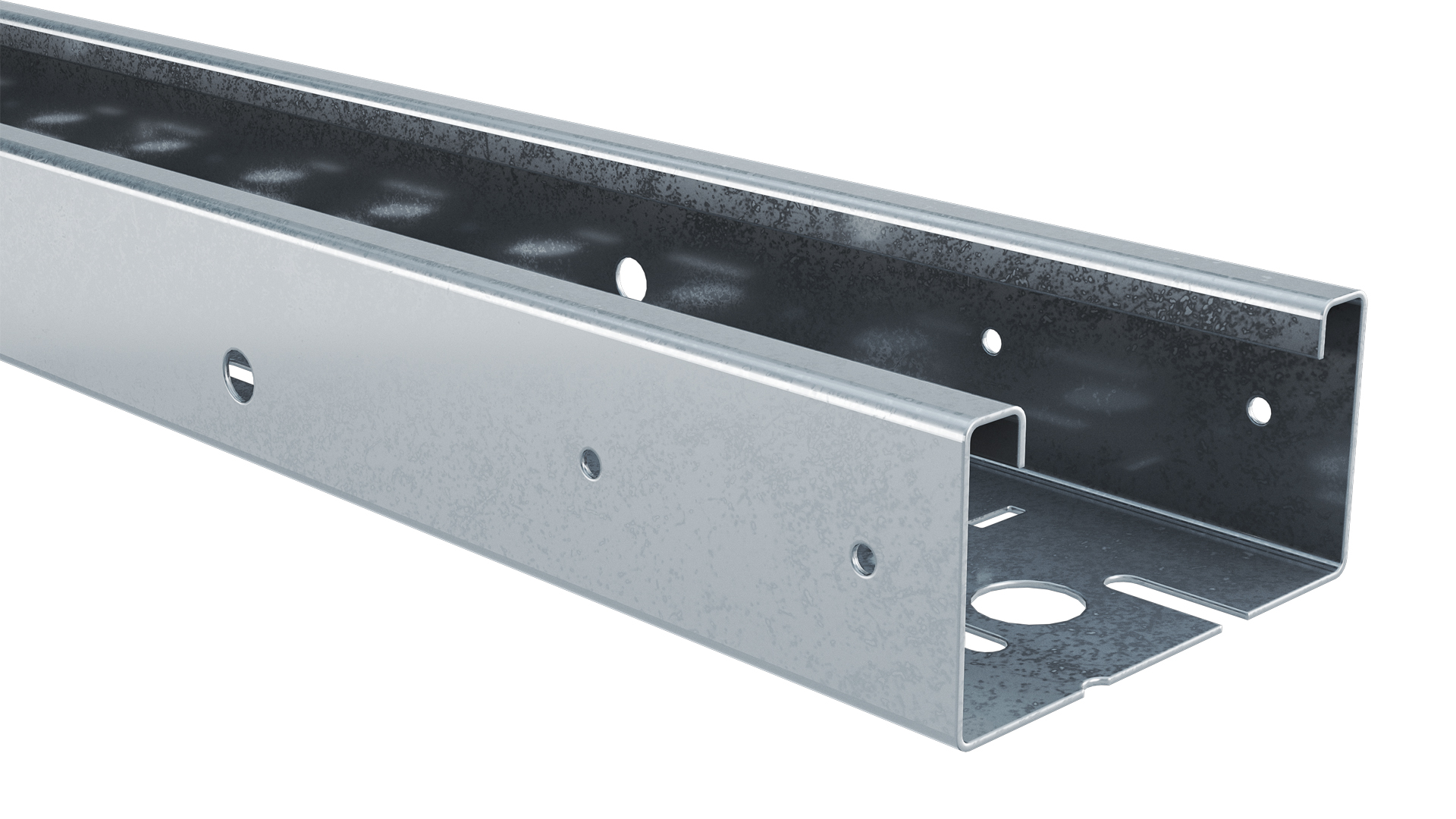

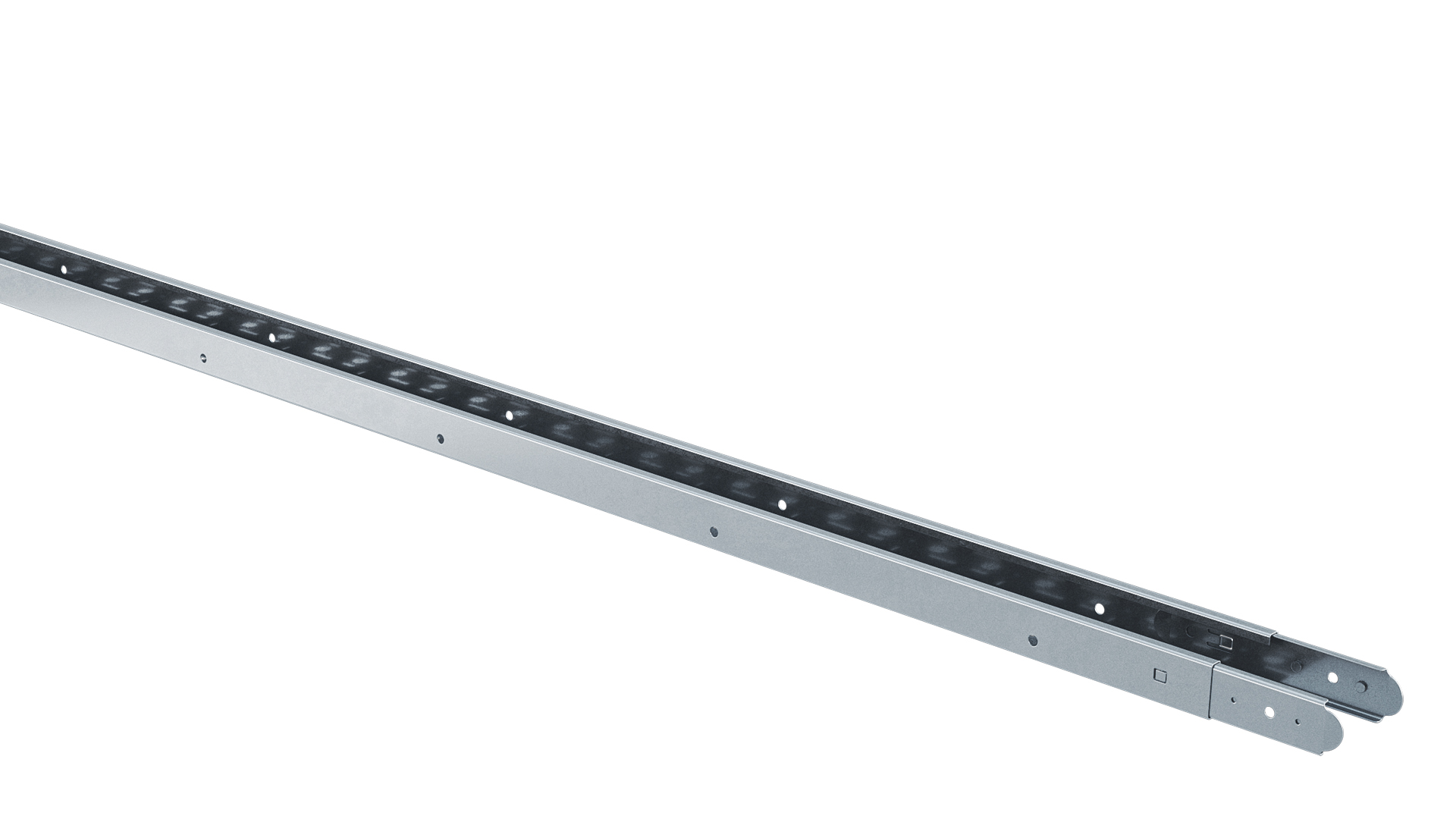

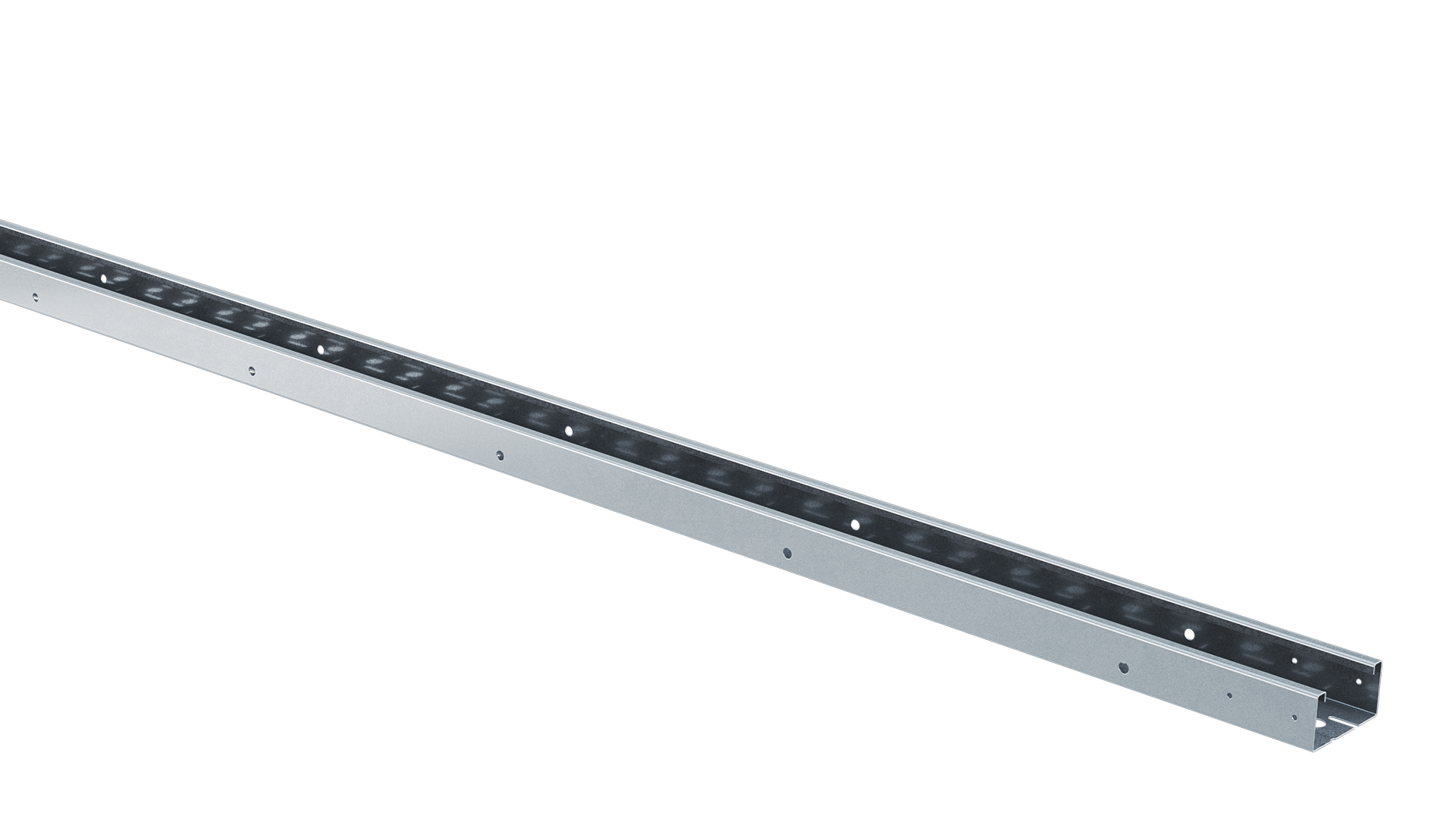

The rail is the basic component of the system and is easily mounted with a click and snap function. It also functions as a ballast rail and connects the entire system.

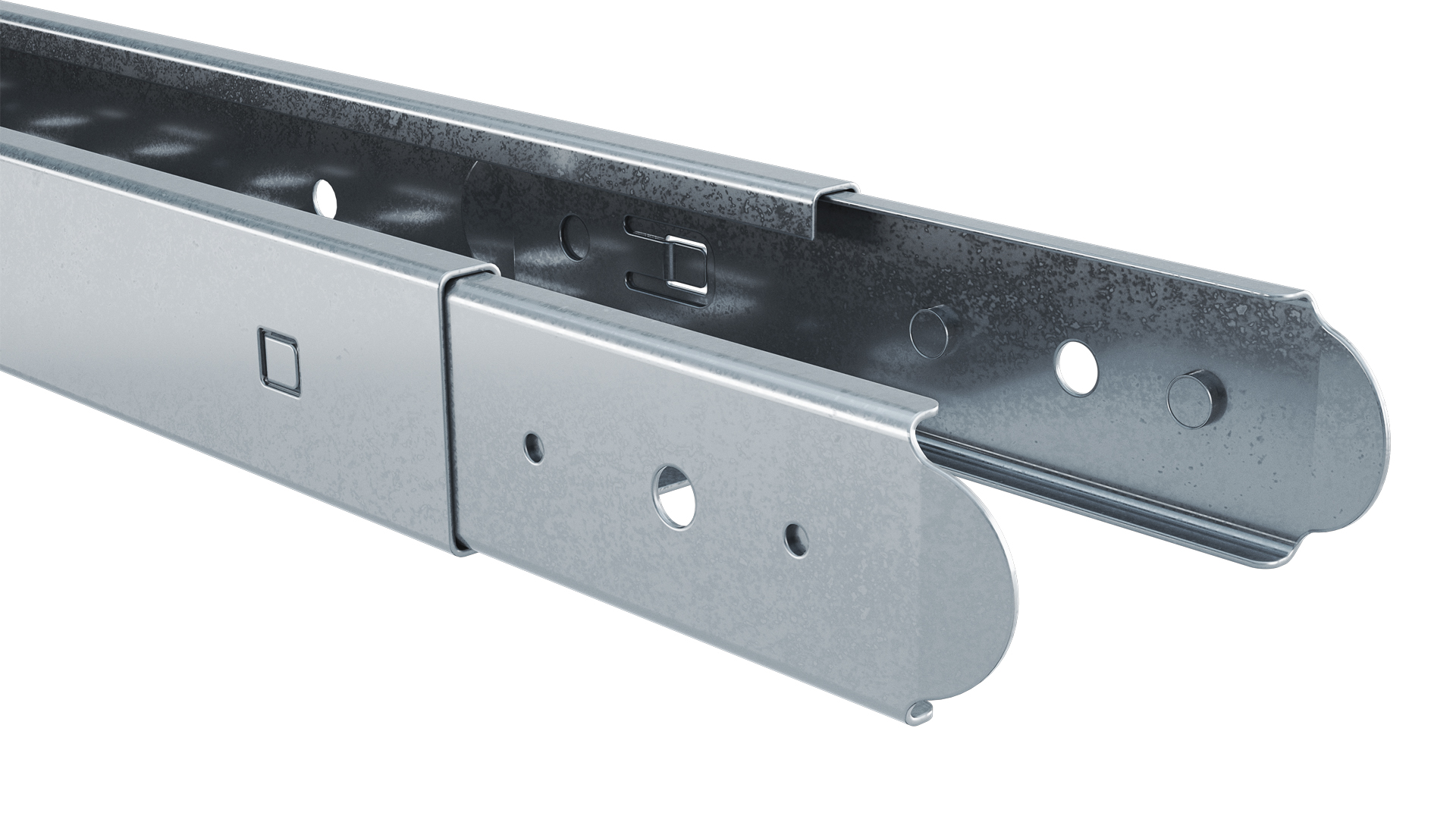

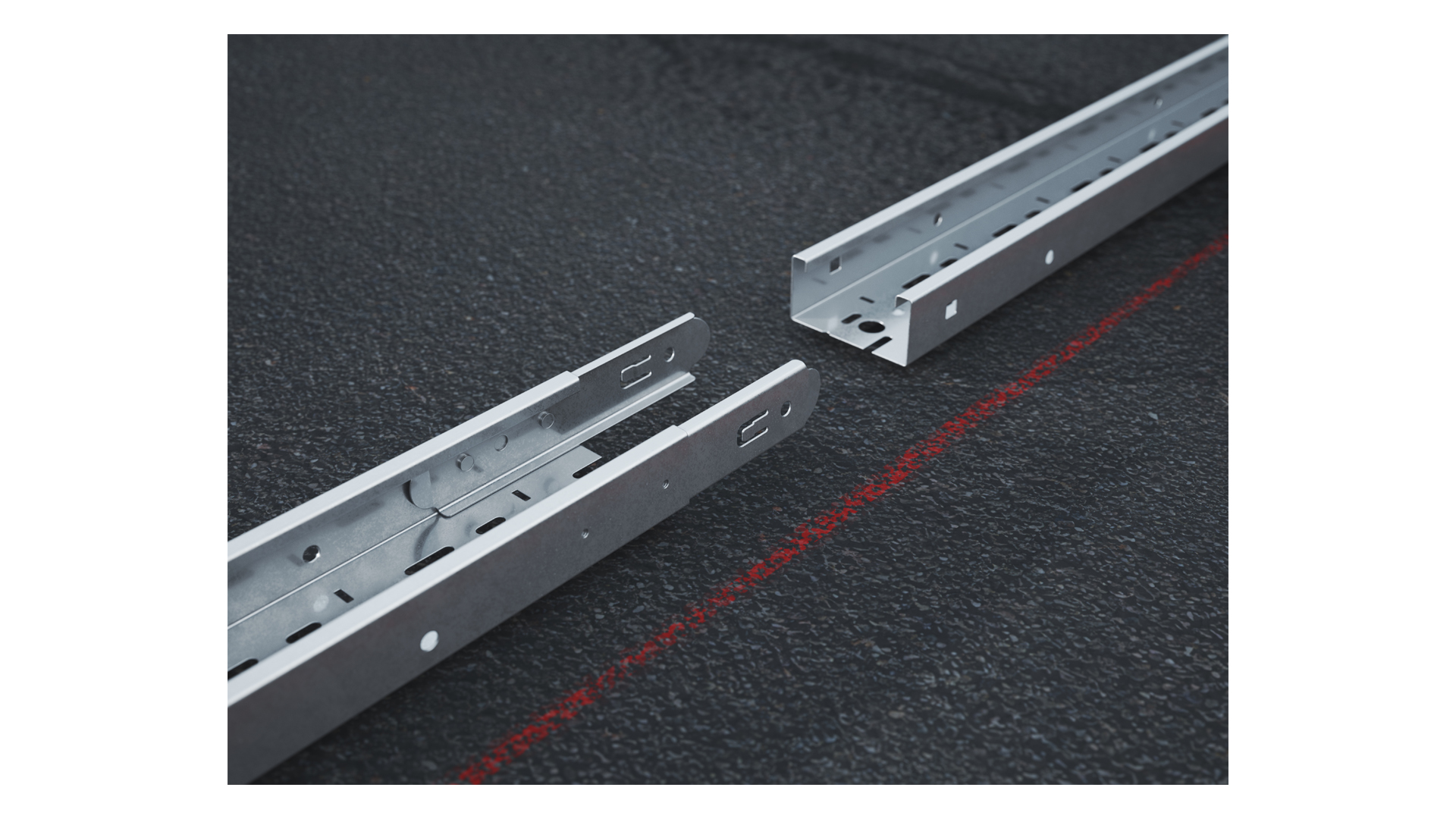

The hole pattern in the bottom makes it possible to place the foot (M10007) at 50 mm intervals, regardless of where the joint is located. The high support (M100002) can be placed at 100 mm intervals. The rails are connected together via a click function with integrated guides. Thanks to the design of the rail and the connection, no thermal breaks are needed in the overall system. The side of the rail is equipped with holes for mounting various accessories, for example to attach a wire ladder.
Can be used in a C4 environment.
Product details
- MP-number M100001-2700
- EAN 7394333960012
- Length 2700 mm
- Width 84 mm
- Height 42 mm
- Weight 4.06 kg
- Corrosion class C4
- Suitable for Soliq
