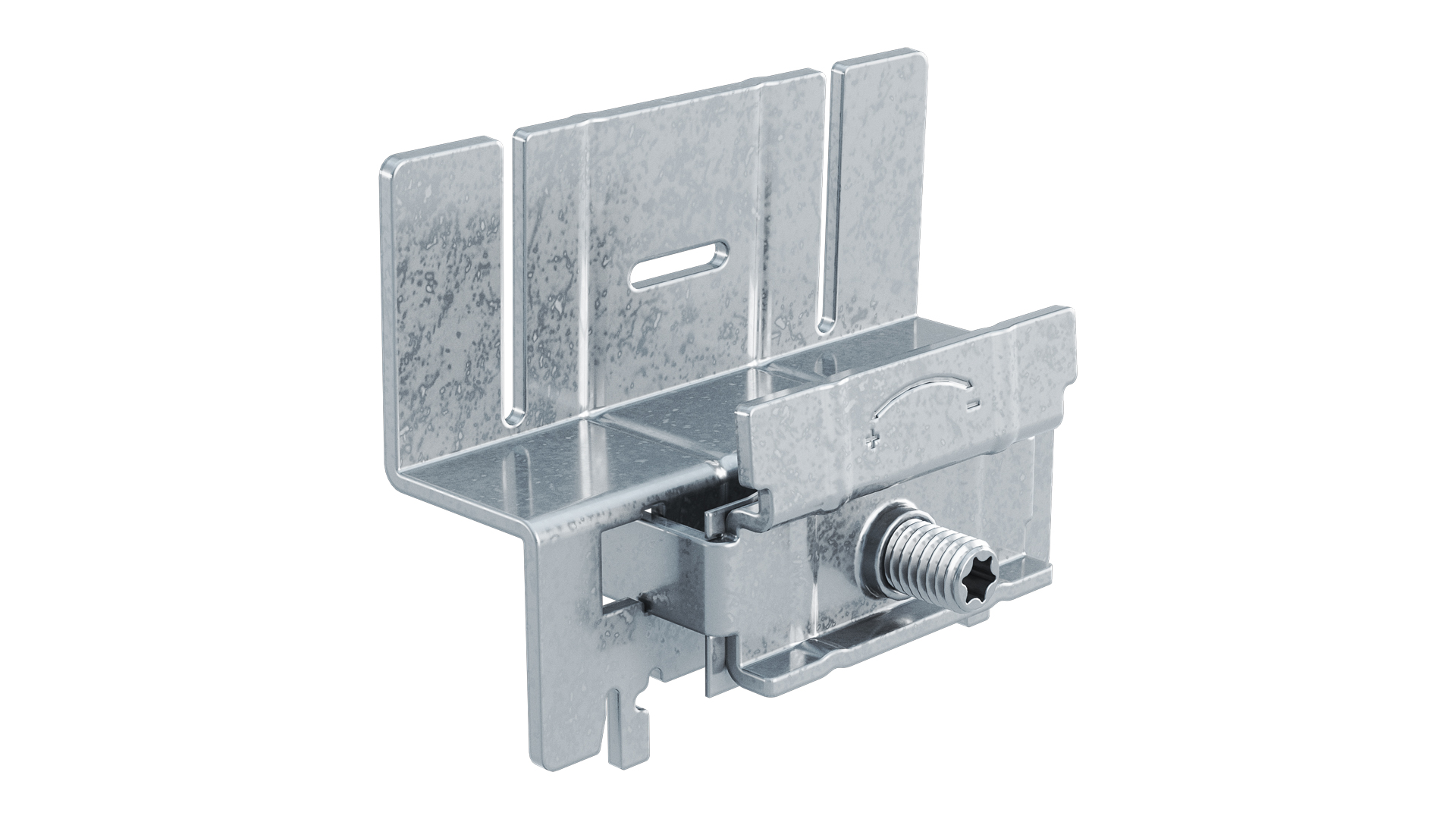

Panel clamp high
E No:
|
MP-number: M100003

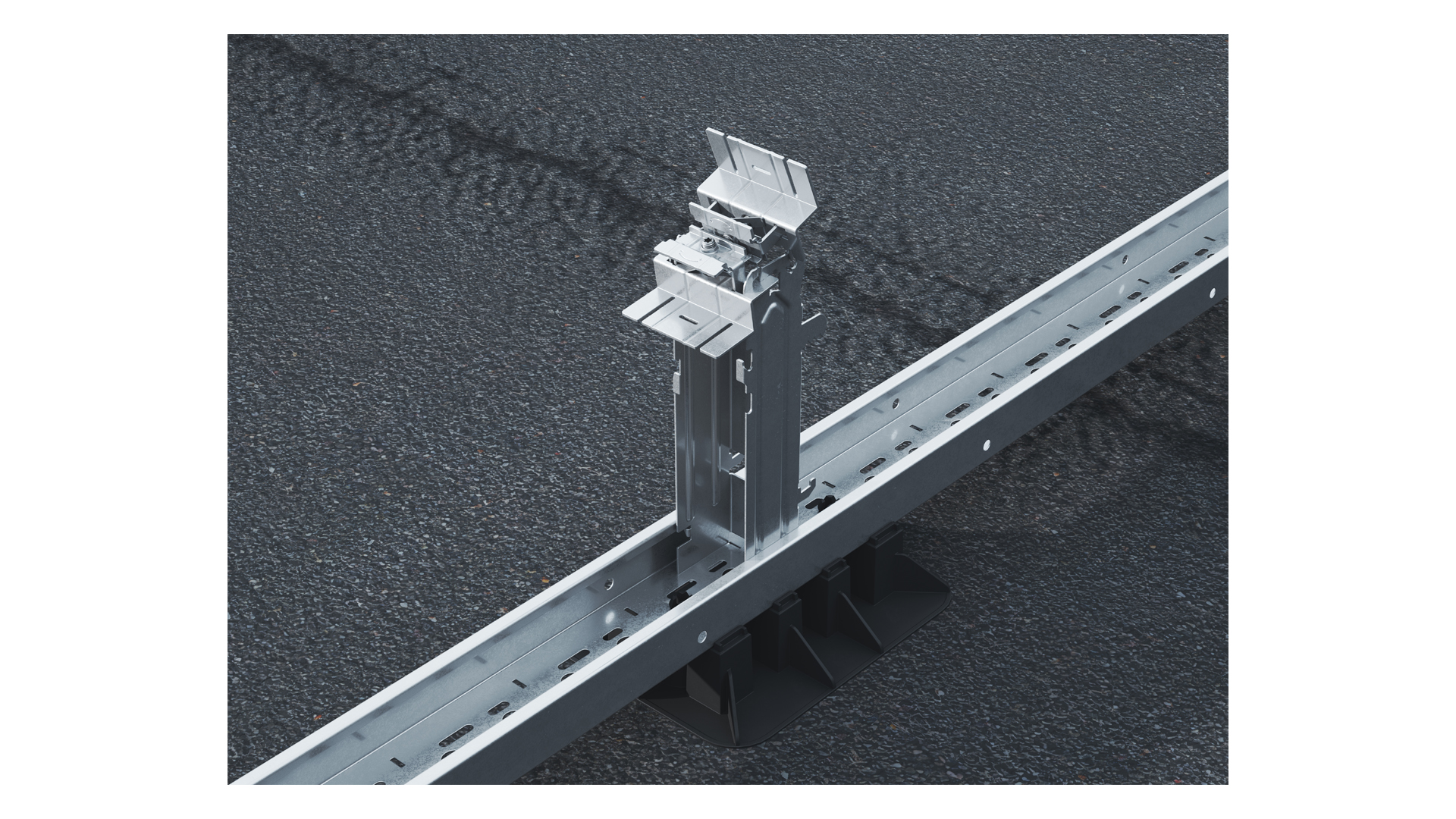

The high panel clamp is intended for mounting on high supports (M100002). The clamping width is 50 mm and the clamp handles panel thicknesses from 28 to 45 mm.
The tightening screw is equipped with T30 wrench grips at both ends, which makes it possible to tighten or loosen the panel in both the raised and lowered positions. Recommended tightening torque is 5–7 Nm.
Product details
- MP-number M100003
- EAN 7394333960067
- Width 80 mm
- Height 46 mm
- Depth 63 mm
- Weight 0.15 kg
- Corrosion class C4
- Suitable for Soliq
