Panel clamp low
C4
E No:
|
MP-number: M100004

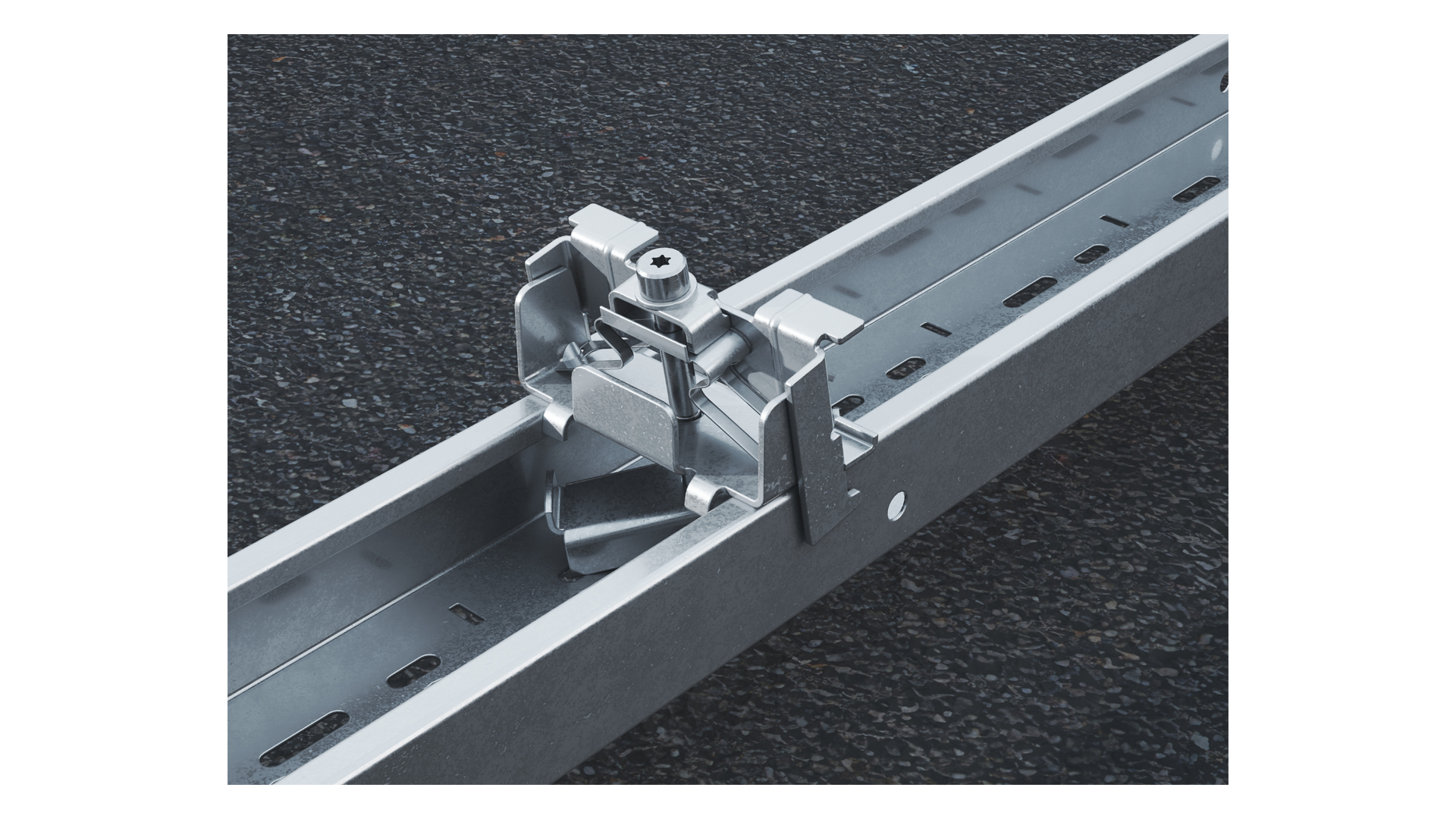

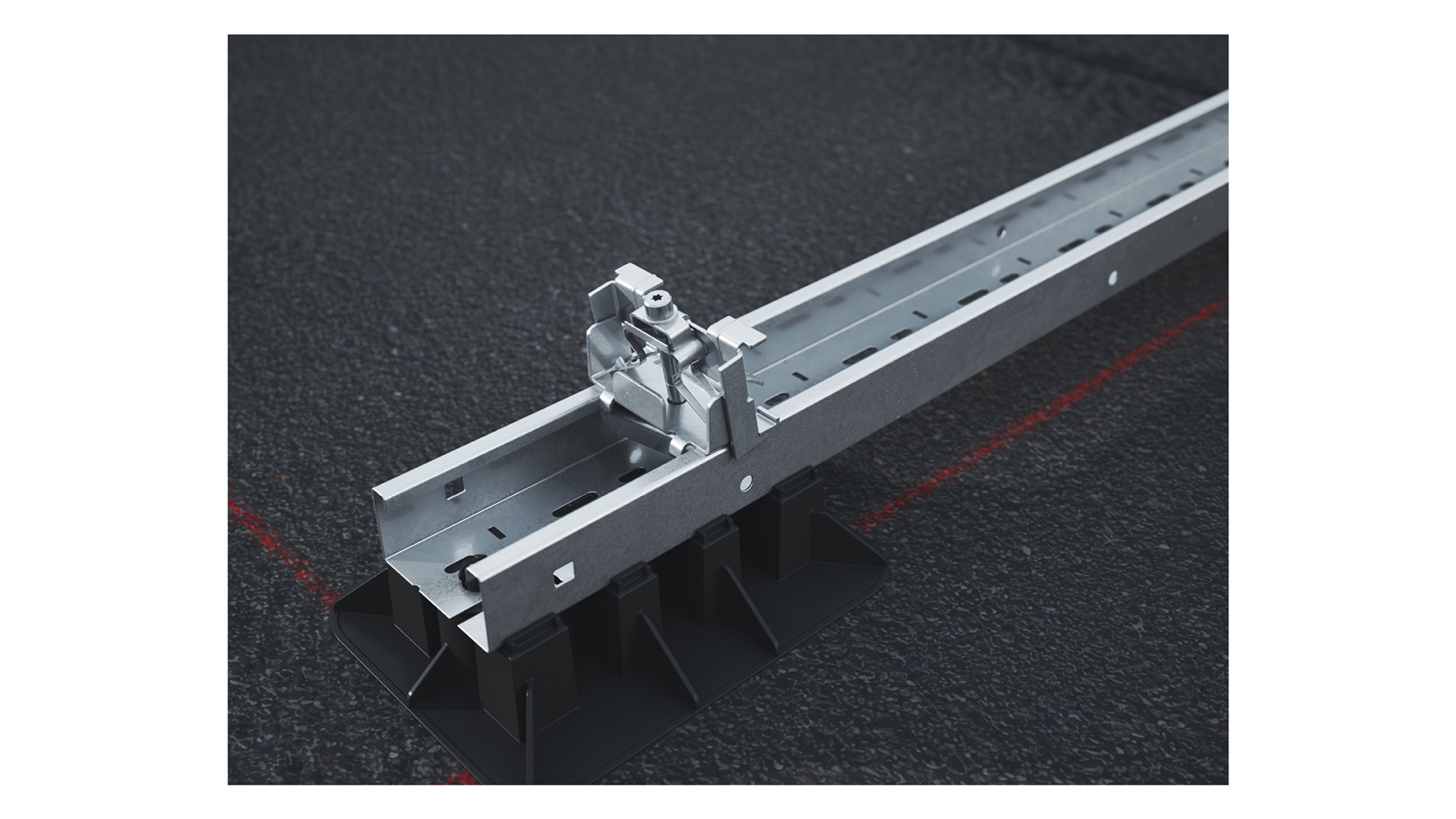

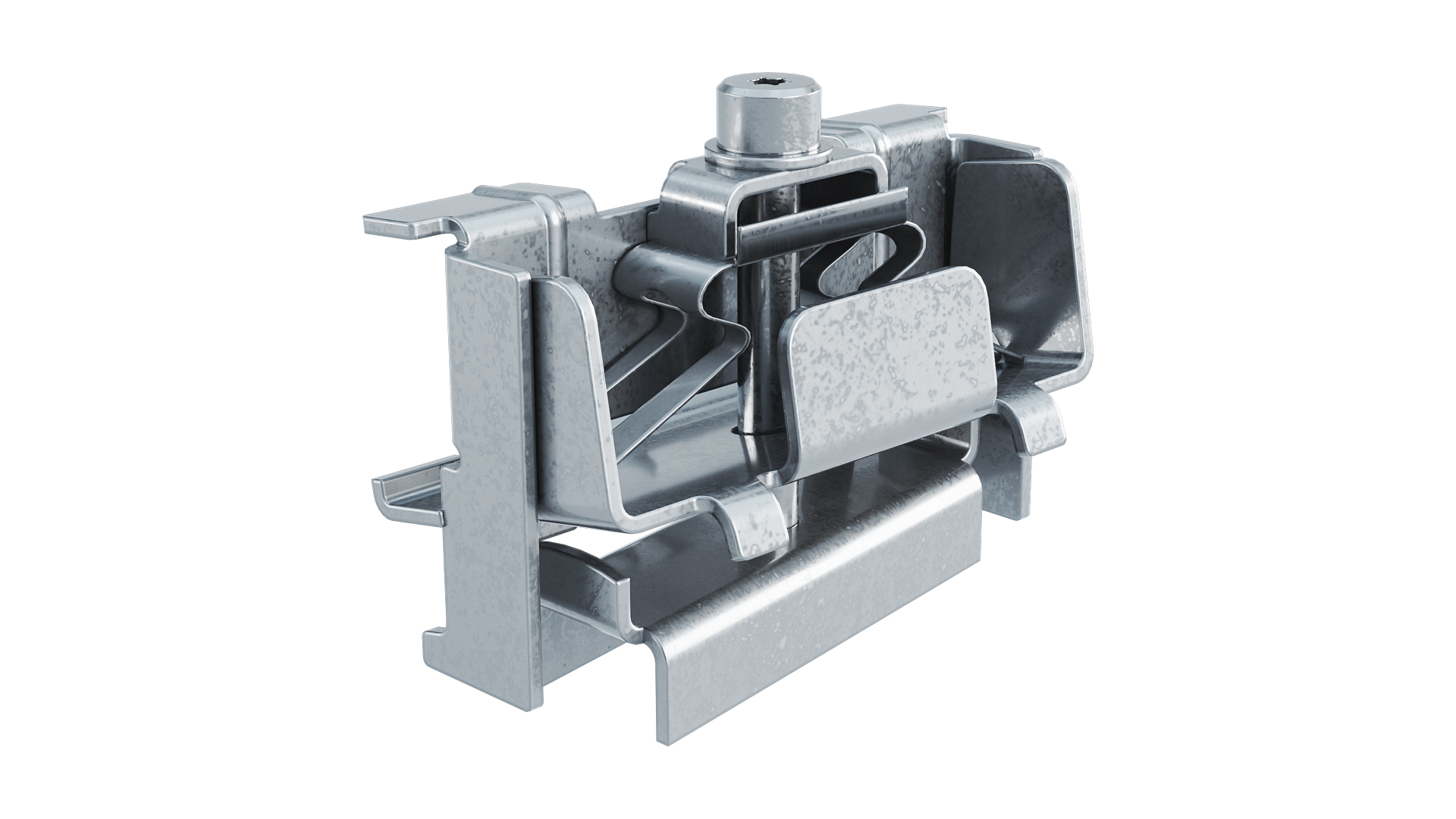

The high panel clamp is intended for mounting on the base rail (M100001-2700). The clamp width is 2×25 mm and the clamp handles panel thicknesses from 28 to 45 mm. The clamp is designed to create contact between the mounting system and the solar panel.
The tightening screw is equipped with a T30 wrench grip. Recommended tightening torque is 5–7 Nm.
Product details
- MP-number M100004
- EAN 7394333960074
- Width 94 mm
- Height 82 mm
- Depth 68 mm
- Weight 0.28 kg
- Corrosion class C4
- Suitable for Soliq
